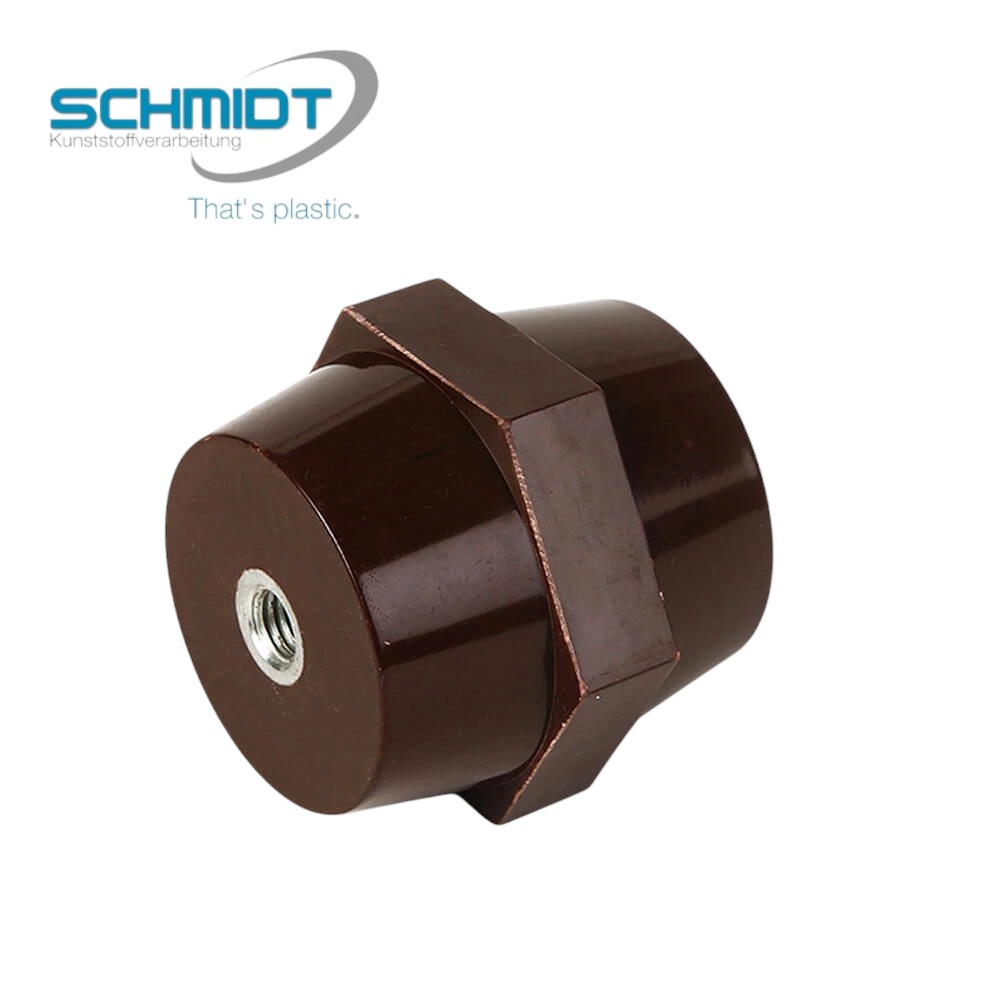

Product Features

✔ Type-tested according to DIN EN 61439-1 (VDE 0660-600-1): 2012-06 and EN 61439-1:2011

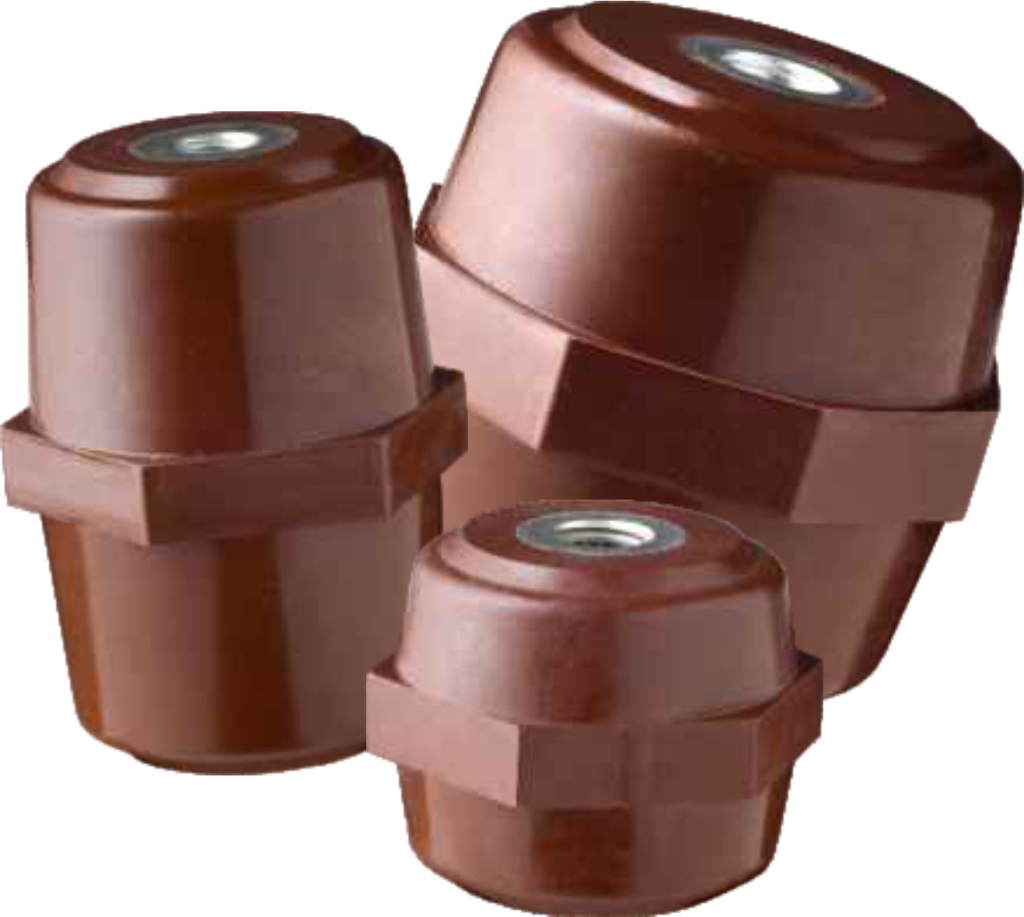

✔ Made of glass fiber-reinforced BMC with wrench flats
✔ Designed for indoor switchgear applications

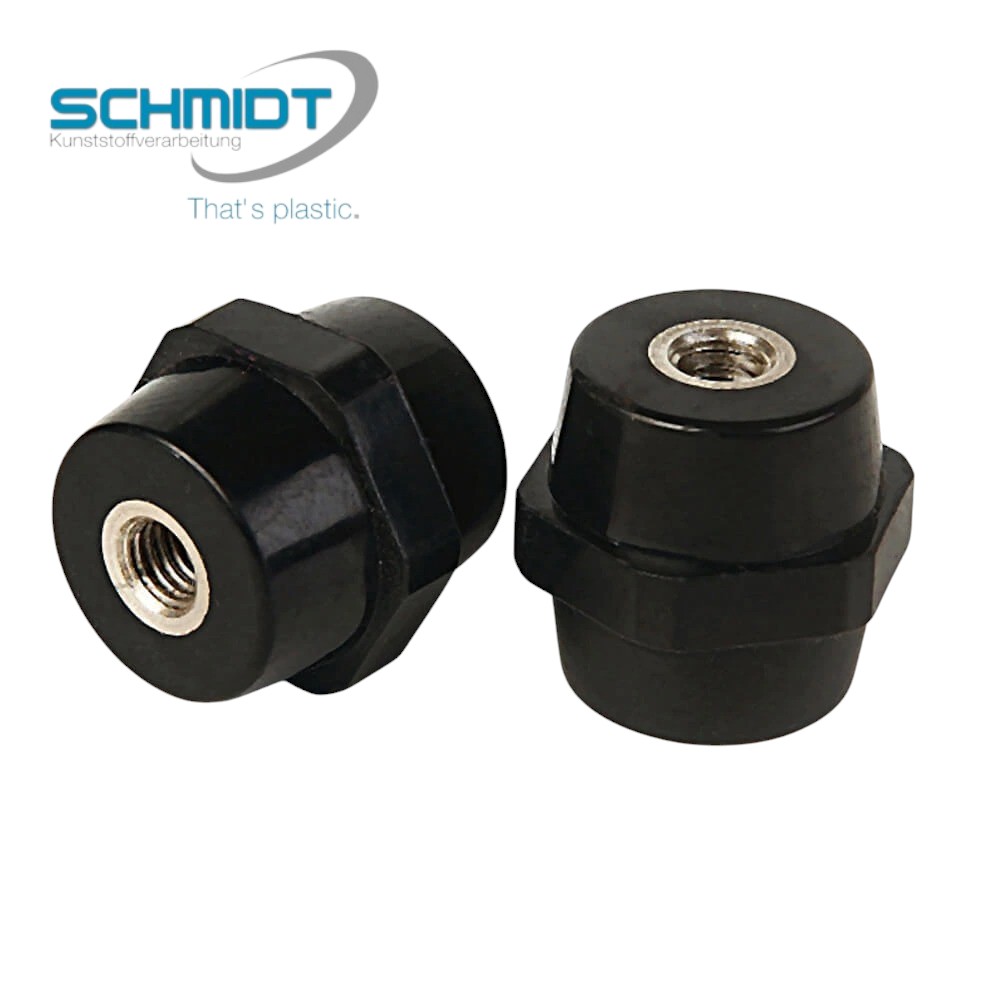

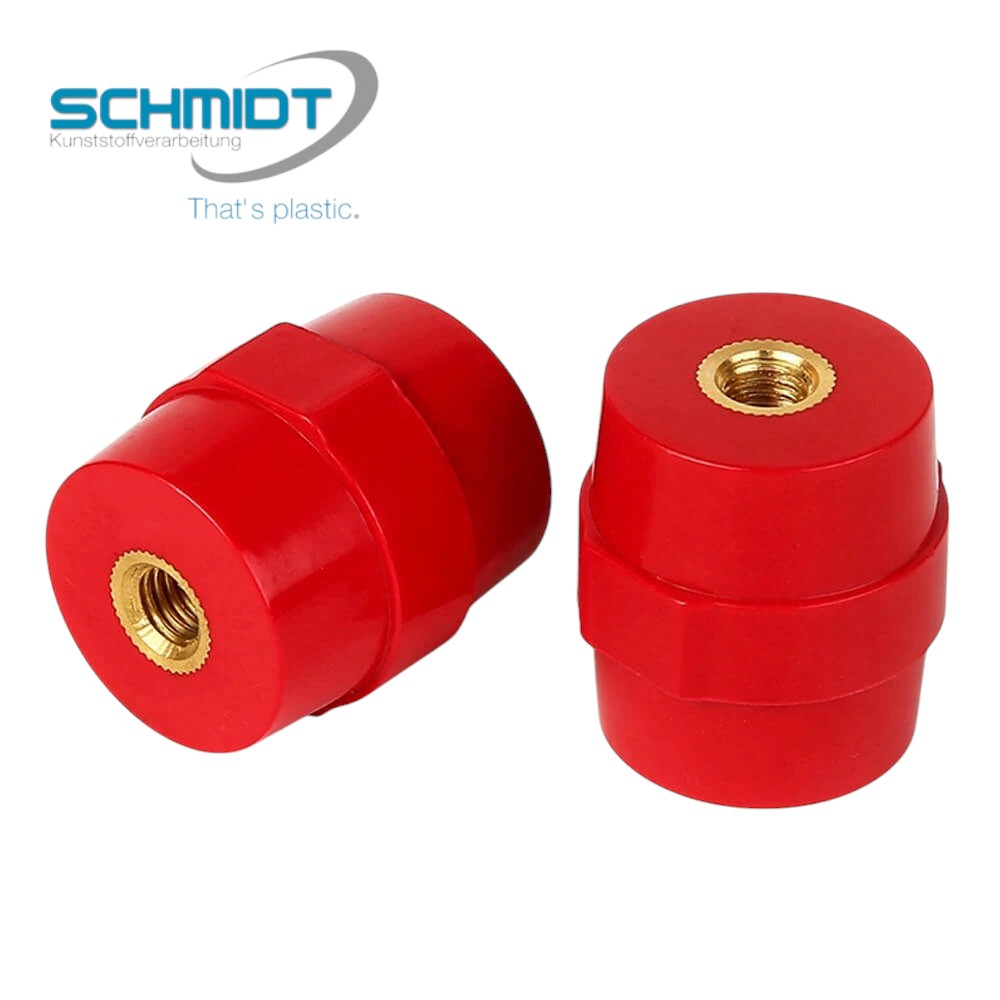

✔ Available in brown (or custom colors upon request)

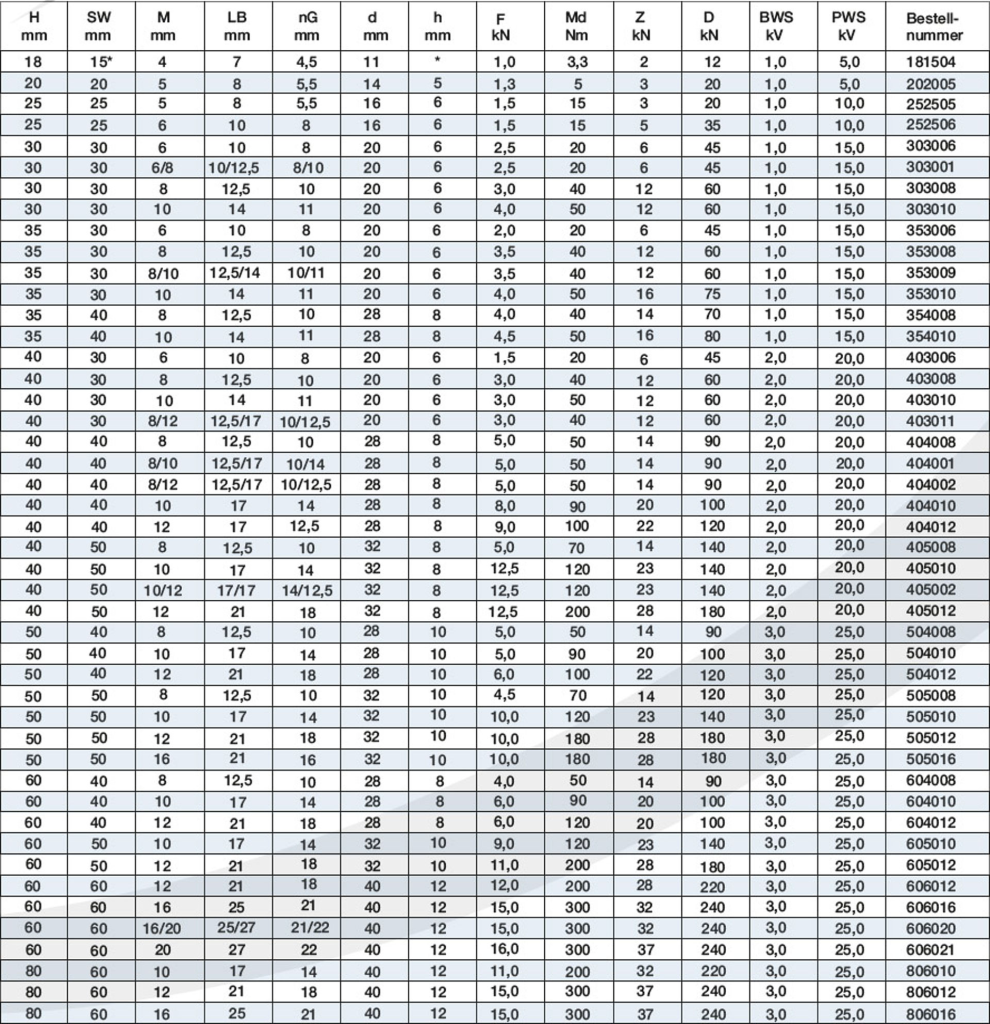

Product details

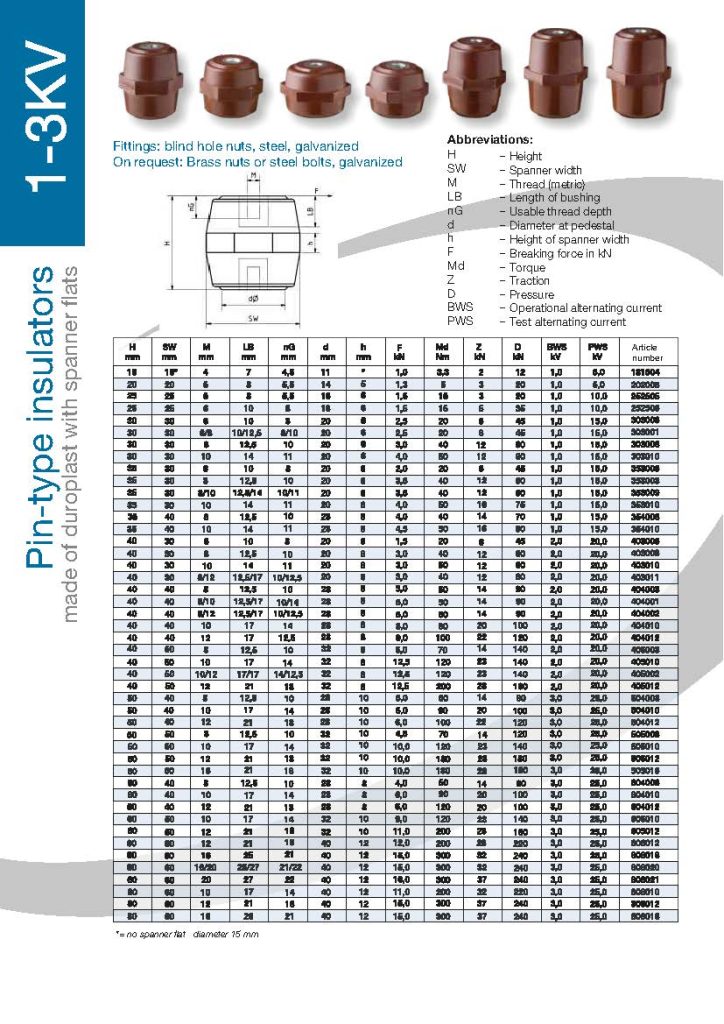

Fittings made of blind nuts – steel, galvanized On request: brass nuts or steel bolts, galvanized

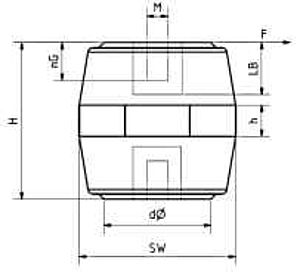

Abbreviations:

H = height
SW = Width across flats
M = Thread (metric)
LB = length of bushing
nG = usable thread depth
d = diameter at shoulder
h = height SW
F = wrap-around force
Md = torque
Z = tensile force
D = compressive force
BWS = Operating alternating stress
PWS = test alternating stress

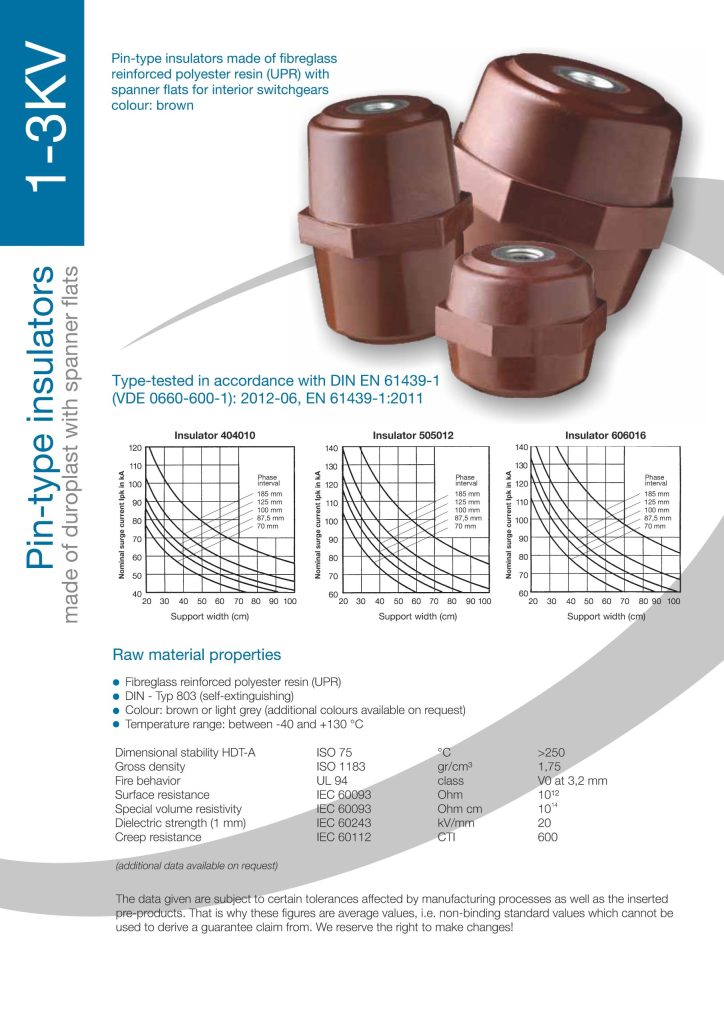

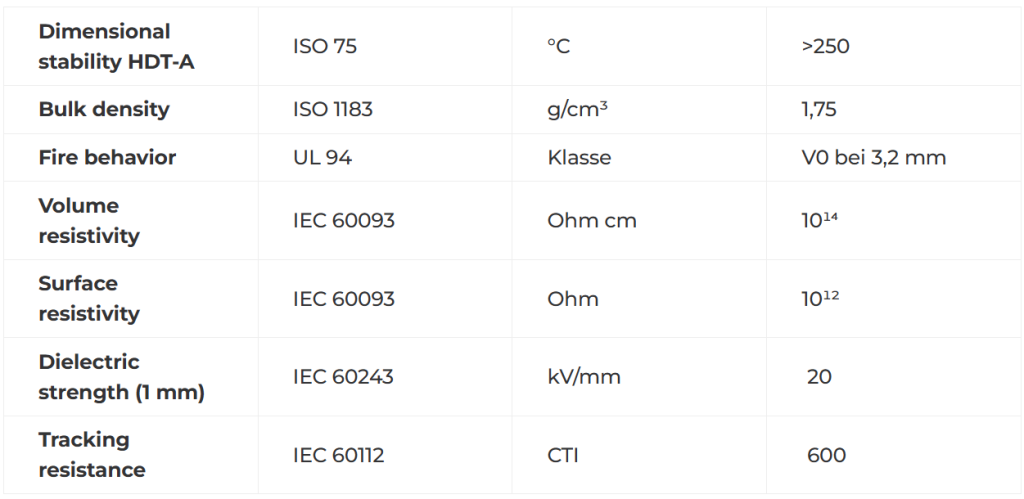

Raw material properties

Base Material: Glass fiber-reinforced polyester resin (UP)
Self-Extinguishing: Meets DIN Type 803
Fire Resistance: UL 94 Class V0 at 3.2 mm
Temperature range from -40 to +130 °C
Color: brown or light gray (other colors on reque)

Note:The data we quote are subject to certain tolerances due to the manufacturing process and the primary materials used. They represent average values and are intended as non-binding guidelines, from which no warranty claims can be derived. We reserve the right to make changes.

What We Produce

In addition to our standard product range, we also manufacture customer-specific technical injection molded parts tailored to your requirements.

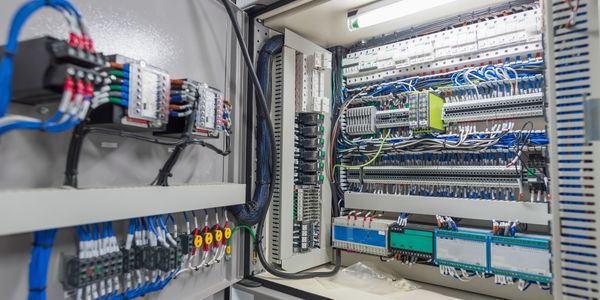

Typical areas of application:Switch cabinet construction
